  • Lube Oil Filtration Machine

  • Detailed description

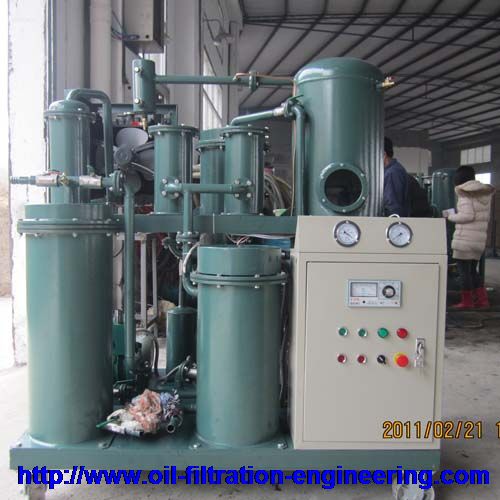

  • The lube oil filtration machine is used for purifying the various types of turbine and hydraulic oil used in the machines of the power plant viz Turbine, Generators etc.

    This machine conditions Lube oil of grade ISO – VG – 46 & ISO –VG – 68 and enhance the parameters of water content from 2000 ppm to 50 ppm and separates (removes) the free water, sludge, gas content and carbon from Lube oil.


    This Oil Filtration Machine's Features:

    1.  Double primary-filter structure, large capacity for holding particles, Multi-stage filtration system to ensure high filtration precision.
    2.  Special polymer materials as filter medium with the functions of broken emulsion, dewatering, removing particles
    3.  Duplex-Stereo film evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively remove water, gas, particles and volatile matter (such as alcohol, gasoline, ammonia, etc.)
    4.  Automatic backwashing system, improving working efficiency

    5.  Advanced medium cooling system
    6.  High quality filtering components, large capacity for holding particles, anti-corrosion, good mechanical performance, long lifetime.
    7.   Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
    8.   Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

    This lube oil filtration machine is used for purifying the hydraulic oil grade ISO – VG - 46 used to clean the power packs.


    For testing power packs fresh hydraulic oil is required in every cycle with particle cleanliness level as NAS 1638 class 5 / ISO 4406 14/11 and water content less than 50 ppm.


    This machine consists of 3 stage filtration of 50, 10 and 5 micron filters with heating and degassing vacuum system.


    Good economic benefits, widely application, it is suitable for purifying various old lube oil in petroleum, chemical, mining, metallurgy, electric power, transportation, machinery manufacturing, railway and so on.


    This oil purifier equipment can remove the water content, gas conteng, impurities, particles, sludges, and other waste residues from lube oil effectively and quickly.
