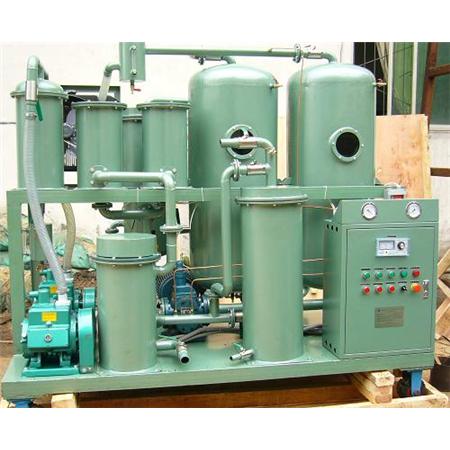

  • Product images
  • Hydraulic Oil Restoration Machinery, Hydraulic Oil Cleaner, Oil Dewater, NAS 5 Oil Purification

  • Detailed description
  • Generally, hydraulic oil is to be maintained at very high quality of Purification. The Oil often having large sizes of particles is passed through coarse type filter, to trap the large sized particles. Having taken care of micronic and sub-micronic particles, it is further finely cleaned by electro-statically, operated hydraulic oil cleaner & brought to the international standards.


    The oil restoration machine is used for purifying the various types of turbine and hydraulic oil used in the machines of the power plant viz Turbine, Generators etc.



    This machine conditions Lube oil of grade ISO – VG – 46 & ISO –VG – 68 and enhance the parameters of water content from 2000 ppm to 5 ppm and separates (removes) the free water, sludge, gas content and carbon from Lube oil & hydraulic oil.



    Working Principle



    When it starts working, the used oil will be poured into the heater to heat under the vacuum pressure, then the heated oil enter into the primary filter which will eliminate the big impurities, then the oil enter into the vacuum separator, the oil will flow the special radiation device, which make the unit/volume oil to produce a large surface area, lets the pollution oil exposure in the low humidity atmosphere, thus the water, air and gas can be eliminated.    The treated vapor and gas form the gaseous mixture becomes the liquid through the water tank and the chiller condensation, then the liquid enters water receiver together, the vacuum extracts the surplus gas.



    The oil which is drained away water flow into precision strainer where can exhaust particulates (oil purification). According the quantity of the water content, a whole purification needs many times circulation to drain away the water.





    Machines’ Technical Data Guarantee

    Item

    Unit

    TYA-10

    TYA -20

    TYA -30

    TYA -50

    TYA -100

    TYA -150

    TYA -200

    TYA -300



    Flow rate

    Lit/hr

    600

    1200

    1800

    3000

    6000

    9000

    12000

    18000



    Vacuum degree

    Mpa

    -0.06 ~ - 0.095



    Working pressure

    Mpa

    ≤0.4



    Temperature degree

    0 ~ 100 (60℃ is the best condition)



    Demulsification

    Min

    New oil≤15min, running oil≤30min



    cleanliness

    NAS

    ≤6 grade



    Power supply



    380V, 3 PHASE, 60 Hz (or as per required)



    Working noise

    DB (A)

    ≤75

    ≤75

    ≤75

    ≤78

    ≤78

    ≤78

    ≤80

    ≤82

    Electric heating power

    KW

    36

    40

    45

    72

    80

    90

    120

    135

    Total electric power

    KW

    38

    42

    47

    75

    87

    101

    135

    147

    Inlet (outlet) caliber

    mm

    Ф25

    Ф25

    Ф25

    Ф32

    Ф42

    Ф50

    Ф50

    Ф60

    Size

    mm

    1500x1000x 1200

    1500x1050x 1600

    1500x1050x1650

    1600 x 1150

    x1700

    1750x1250x 1850

    1900x1600x1950

    1900x1700x2000

    2100x1700x2100

    Weight

    Kg

    450

    550

    600

    750

    850

    1000

    1200

    1500

    The dimension and weight will be changed with changing the technical specification




     Oil Data after Treatment



    Moisture (water content)

    80 PPM

     (remove 100% of free water and 95%of dissolved/ emulsified water)

    Gas Content

    0.01%

    Suspended Particles (Filtration precision)

    1 ~ 5 micron

    Demulsification

    New oil15min, running oil30min

    Cleanliness

    NAS 1638 Grade 5
