  • Transformer Turns Ratio Tester, ttr, transformer turns ratio test set

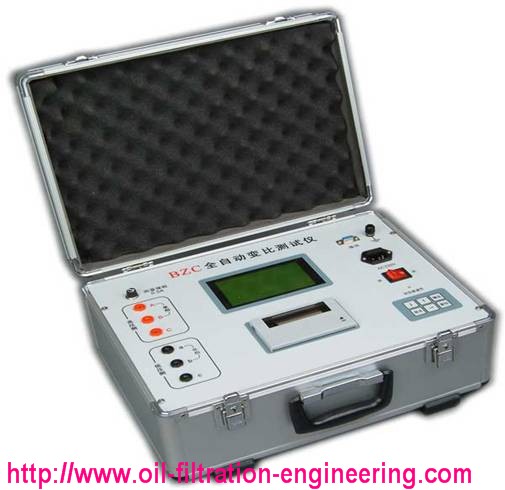

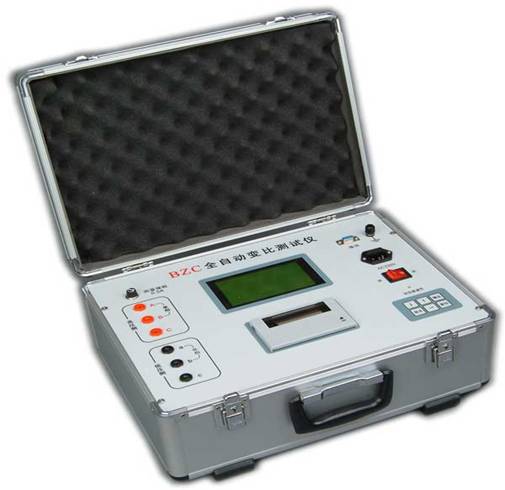

    Transformer Turns Ratio Tester, ttr, transformer turns ratio test set

    Transformer Turns Ratio Tester, ttr, transformer turns ratio test set

  • Detailed description
  • Wide range,
    High accuracy and resolution,
    suitable TTR test for all kinds of transformer
    widely used for Grid and power plant



    Features:

    ·Test range wide, the highest can reach up to 10000.
    ·Fast test speed, completion TTR test of three-phase transformer within 11 seconds

    ·Suitable for single phase, three phase and Z-shaped connection transformer.

    ·Blind test transformer turns ratio, groups test .



    ·Data display, storage and output:  LED display test procedure and data. Data printing. 50 groups data storage

    ·Wrong connecting protection for High-voltage terminals and low-voltage terminals

    ·Wrong connecting protection for 380V input power supply

    ·Short Circuit protection for both transformer and its turn-to-turn

    ·Small volume, light weight



    Technical specifications:



    ·Display : 5 digits

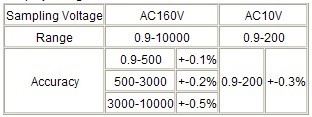

     transformer turns ratio tester specs

    ·Minimum resolution: 0.0001

    ·Working power: AC220V±10%,50/60HZ±1HZ

    ·Measurement data storage: 480 groups

    ·Working temperature: -20°C-40°C

    ·Relative humidity: ≤80%,no condensing

    ·Size:  320mm×275mm×140mm (instrument),395mm×240mm×250mm(test leads)

    ·.N.W.: 4.5kg (instrument),6 Kg(test leads)
