  • Double Stage Transformer Oil Filter Machine

  • Detailed description
  • This Double Stage Transformer Oil Filter Machine is brought to the clients at competitive prices. The Double Stage Transformer Oil Filter Machine undergoes rigorous quality control tests to make it devoid of all defects.


    The machine is mainly used for electric power department and industries to deal with various oils such as transformer oil, mutual oil, switch oil, dielectric oil and so on. It also can be used for filtration of more than 110KV substation live line work onsite. Meanwhile, as the bridge-type vacuum linking system, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling

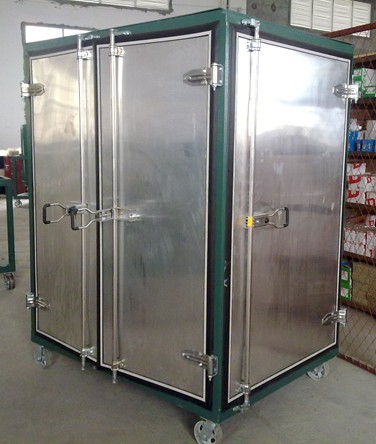

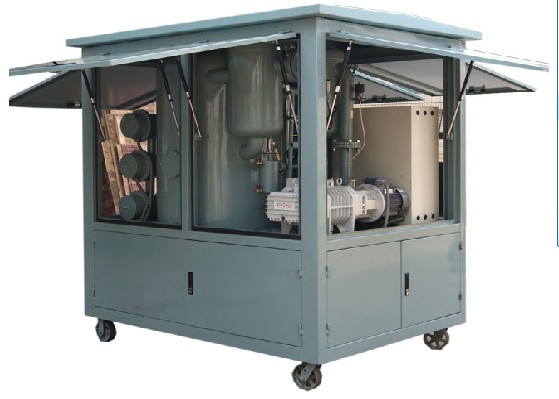

    Fully Enclosed (Weather-proof) Transformer Oil Filter Machine

    Attributes :

    • Capacity ranges from : 1000 LPH to 30000 LPH
    • Inlet Stainless Steel Filter is easy to clean and used to catch hold coarse dirt
    • Standard efficiency of 0.5 / 1 Micron after fine filter
    • Heat exchange through very low specific power electric heaters
    • To improve the vacuum pumping speed, vacuum pump set in combination with rotary vane vacuum pump and roots pump are provided
    • Easy to operate

    • Compact equipment is also provided with pneumatic wheels for easy transport on road
    • Duplex 3D stereo-evaporation technology, eliminating the liquid water very effectively
    • Distinctive removing impurities technology filtering through double FH trapezoidal network and absorbing by high polymer without the mechanical power

    • UK G technology by which the trace water that is show chain, such as dissolved water, can be removed effect
    • Carbon fiber infrared heating system that can make the oil contains zero sum of ethyne after treatment
    • adopts the double-infrared liquid automatic controller, sensitive automatic pressure protector and the high effective equipment for degas, so it is easy to operate

    Optional Features :
    • An exhaust condenser to measure the extracted water
    • Condenser is equipped to settle the most volatile oil fractions which might distil back to the column
    • Digital temperature measurement
    • Digital precision vacuum gauge
    • Digital flow meter
    • Digital in line moisture content meter
    • Ionic reaction columns to remove the acidity from the oil
    • Audio / Visual fault annunciation System
    • PLC control system
    • Mobile Trailers can be provided
    • Fully-enclosed and Semi-enclosed for weather-proof are available
